ZXS-011
SZ50 Extended Linear Vibrating Screen
ZXS-011 | Extended Type | Single-layer, 2 outlets
Review the machine image, key specifications and English parameter drawing below. Send your material, mesh size, capacity, voltage and destination port for selection confirmation.
Product Parameters
These parameters are for model comparison and quotation discussion. Final machine configuration should be confirmed according to material condition and capacity.
- Product No
- ZXS-011
- Model
- SZ50 Extended
- Version
- Extended Type
- Structure
- Single-layer, 2 outlets
- Screen Size
- 1800 x 500
- Screen Area
- 1800x500 mm
- Layers / Outlets
- 1 layer / 2 outlets
- Motor Power
- 600W+600W
- Speed Control
- Standard motor
- Overall Size
- 2100x680x880 mm
- Machine Height
- 880 mm with feet / 680 mm without feet
- Body Thickness
- 2.28 mm
- Frame Tube
- 50 x 50 x 1.2mm
- Material
- 201 stainless steel is standard, and 304 stainless steel can be customized.
- Voltage
- 110V / 220V / 380V / 415V, confirm by country
- Net Weight
- 108 kg
- Wooden Case Size
- 2100 x 680 x 620
- Wooden Case Gross Weight
- 112 kg
- Packing Volume
- 0.88536 m3

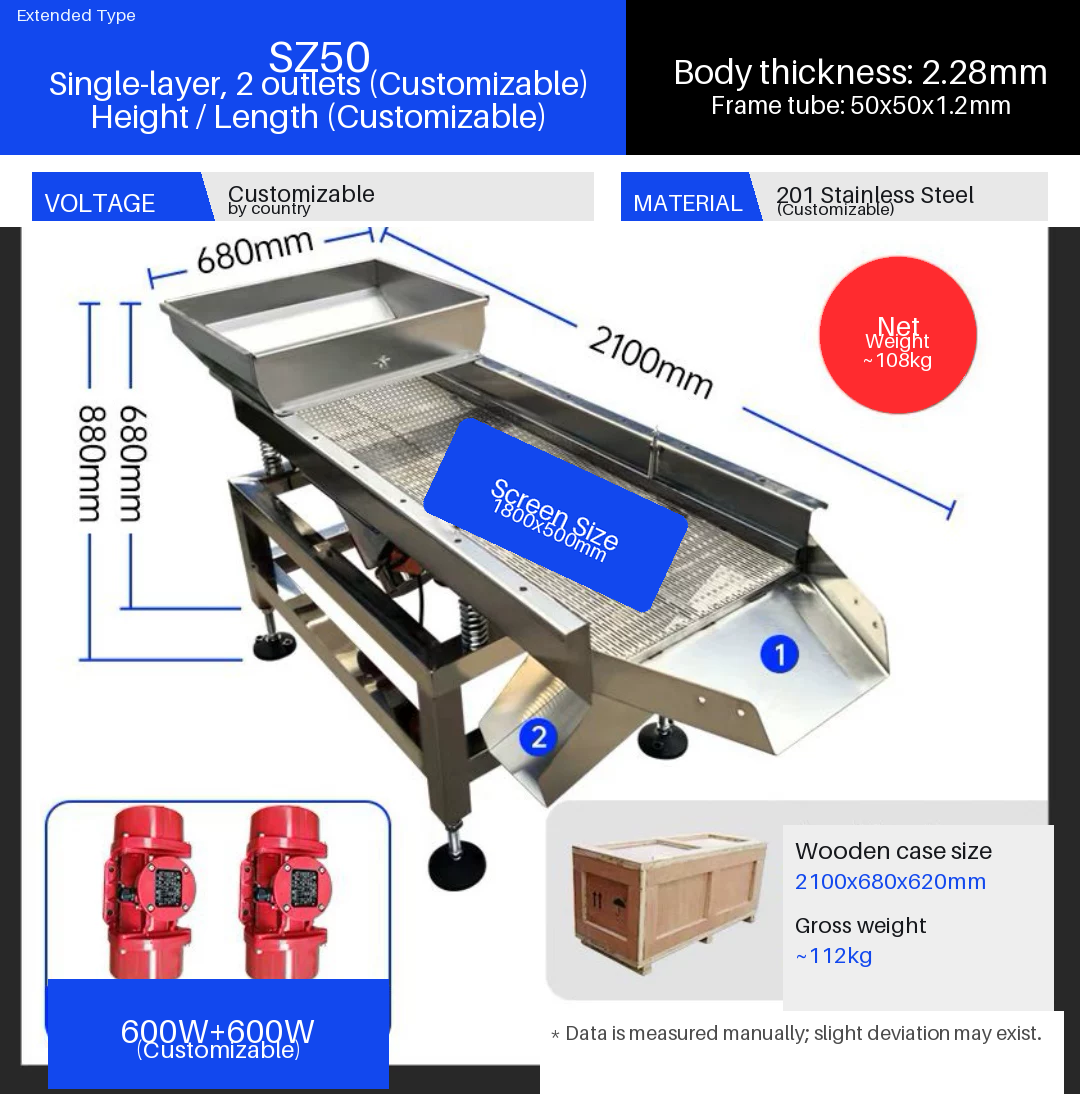

Parameter Image
The parameter drawing is displayed as a complete image without overlays or cropping, so the machine, dimension lines, labels and specifications remain visible.
