ZXS-006
SZ40 Linear Vibrating Screen
ZXS-006 | Standard Type | 2-layer, 3 outlets
Review the machine image, key specifications and English parameter drawing below. Send your material, mesh size, capacity, voltage and destination port for selection confirmation.
Product Parameters
These parameters are for model comparison and quotation discussion. Final machine configuration should be confirmed according to material condition and capacity.
- Product No
- ZXS-006
- Model
- SZ40
- Version
- Standard Type
- Structure
- 2-layer, 3 outlets
- Screen Size
- 1200 x 400
- Screen Area
- 1200x400 mm
- Layers / Outlets
- 2 layer / 3 outlets
- Motor Power
- 490W+490W
- Speed Control
- Standard motor
- Overall Size
- 1600x550x900 mm
- Machine Height
- 900 mm with feet / 700 mm without feet
- Body Thickness
- 1.98 mm
- Frame Tube
- 50 x 50 x 1.2mm
- Material
- 201 stainless steel is standard, and 304 stainless steel can be customized.
- Voltage
- 110V / 220V / 380V / 415V, confirm by country
- Net Weight
- 64 kg
- Wooden Case Size
- 1570 x 750 x 470
- Wooden Case Gross Weight
- 85 kg
- Packing Volume
- 0.553425 m3

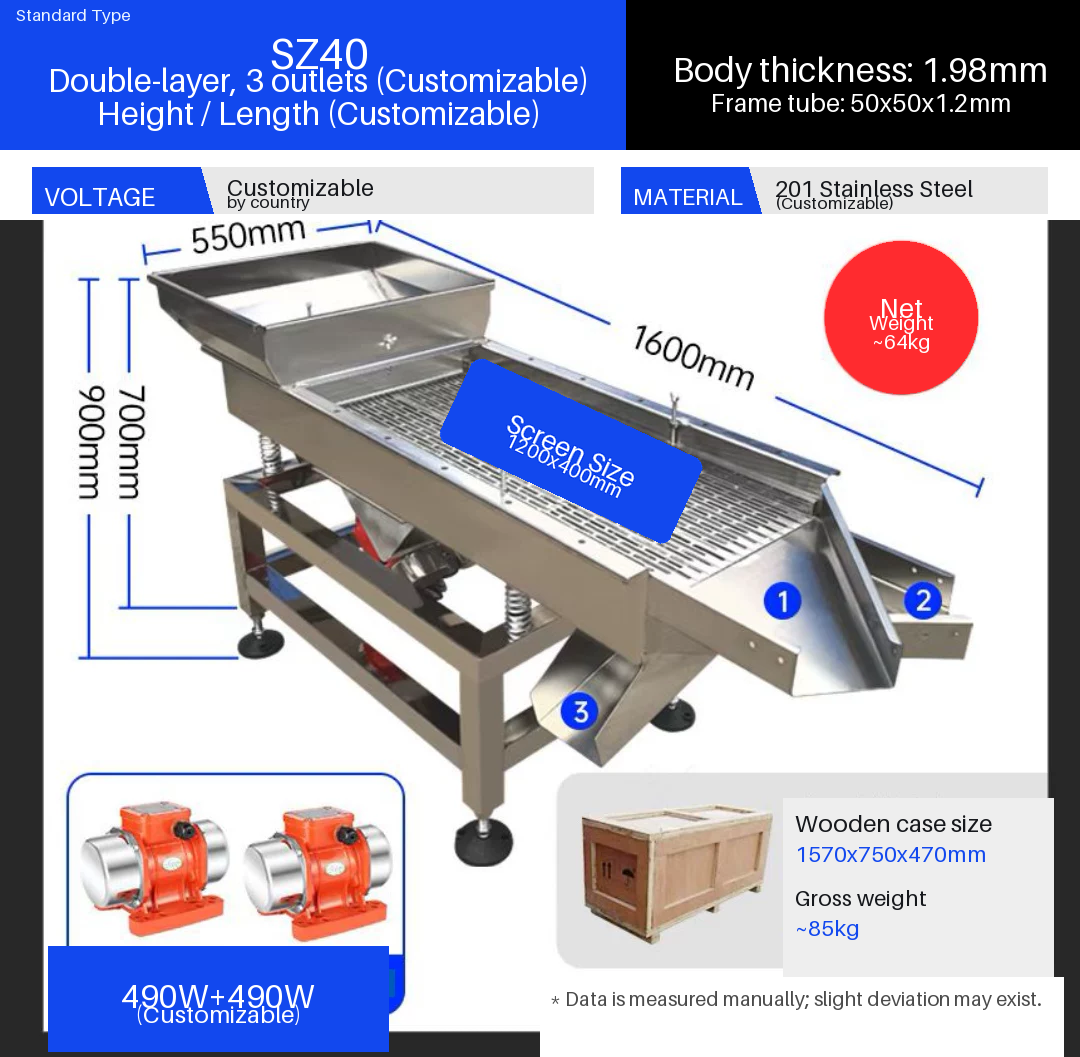

Parameter Image
The parameter drawing is displayed as a complete image without overlays or cropping, so the machine, dimension lines, labels and specifications remain visible.
Discuss Your Screening Requirement
Send the material name, screening target, target mesh, capacity and voltage. You can also request real machine photos or videos through a direct contact channel.
Product First
Start with your material and screening target
Choose a product category, then share the material name and condition, feed size when known, target mesh, required capacity, number of fractions, voltage and destination. This helps us review a suitable product direction.
Ask for Real Machine Photos
Request product photos or short videos before choosing a category.
Share Your Screening Target
Tell us what needs to be screened, graded or removed so we can review the product direction.
Discuss Configuration Options
Review mesh, layers, outlet, voltage and contact material by direct chat.
